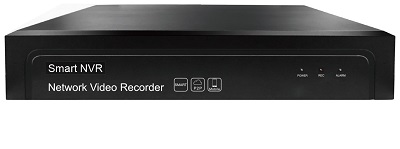

ان وی آر 16 کانال 5 مگا پیکسل اسمارت مارک ADK مدل ADK-1216S

ان وی آر 16 کانال 5 مگا پیکسل اسمارت مارک ADK مدل ADK-1216S

ان وی آر 16 کانال 5 مگا پیکسل اسمارت مارک ADK مدل ADK-1216S

  • Support H.265+/H.265/H.264 coding front end adaptive access.
  • Support ONVIF, Highprofile S, Highprofile G, and can be connected to network cameras that comply with ONVIF, RTSP standards made by many major manufacturers.
  • Support IPC front-end Intelligence: target count, object left/lost, area detection, line crossing.
  • Support AEeye P2P cloud services, through cloud access, cloud monitoring, cloud forwarding to achieve any terminal access to NVR anytime, anywhere.
  • Support immediate playback function under preview screen without affecting other channel preview.
  • Support for adaptive bit stream preview and playback 4 screen maximum support 1280*720, single screen 2592*1944.
  • Provide networked centralized monitoring and management software.
  • NVR Technical Parameter:

    Product Model

    ADK-12216S

    Operating System

    Embedded LINUX operating system

    Video Standard

    H.265+/ H.265/H.264

    Intelligent Support

    IPC support

    Various intelligent detection access and linkages such as line crossing, wondering, face, license plate, audio input abnormality, virtual focus and scene change.

    Video & Audio Input

    Video Input

    16CH 5MP H.265+/H.265/H.264 IP Camera

    Bandwidth

    40M

    Audio Input

    IPC composite stream network audio input

    Video & Audio Output

    HDMI Output

    1CH, HDMI can output audio at the same time

    VGA Output

    1CH

    Preview Split

    1/4//9/16 screen

    Video & Audio Coding

    Video Resolution

    5MP/4MP/3MP/1080P and below resolution

    Synchronized Playback

    4CH

    External

    Ports

    Internet

    1 x RJ45 10M/100M adaptive Ethernet port

    USB

    2 x USB2.0 rear

    HDD

    HDD Port

    1x SATA

    MAX Capacity

    up to 8TB

    Network Management

    Network Protocol

    UPnP (Plug & Play), SNMP (Simple Network Management), NTP (Network Timekeeping), SADP (Device Network Search), SMTP (Mail Service), NFS (Access NAS), iSCSI (IP SAN Application), PPPoE (Dial-up Internet access), DHCP (automatically obtain IP address)

    P2P

    Remote Monitoring

    AEeye

    Supports iPhone, iPad, Android Smart phone

    Supports Windows 7 and above computer client, supports Apple MAC computer client

    Power Supply

    DC 12V2A (external adapter)

    Working Temperature

    -10℃--+55℃

    Working Humidity

    10%-90%

    Power Consumption

    ≤10W (without HDD)

    Dimensions

    Device:255mm×220mm×43mm,Packing:358mm×93mm×258mm

    Weight (Without HDD)

    N.W.:0.75Kg;Packing: 1.1Kg

    Outside Carton

    10 pcs/carton. Dimension:462mm×365mm×530mm;Weight:12Kg

    Installation Method

    Desktop installation
