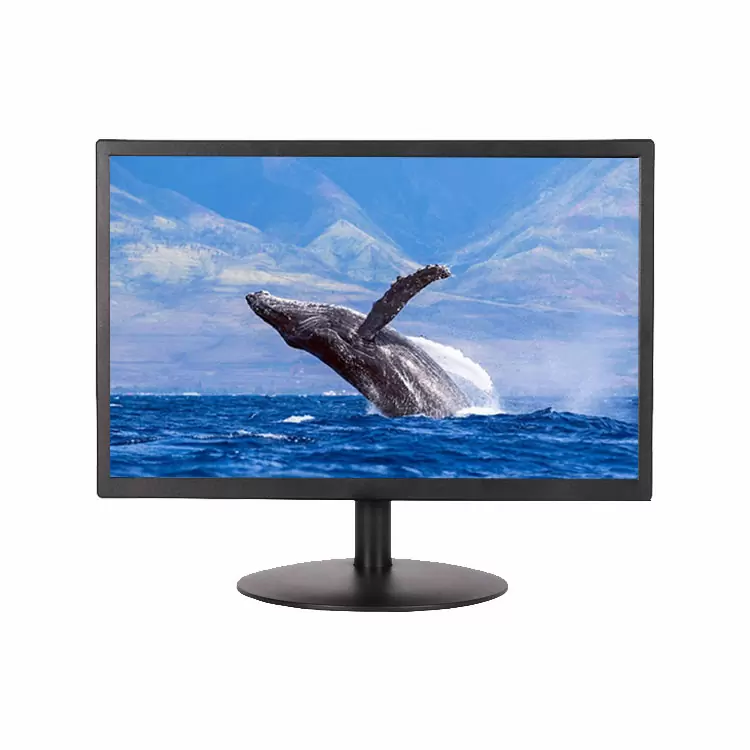

مانیتور 22 اینچ صنعتی جوویژن مدل JVS-22LED-A

مانیتور 22 اینچ صنعتی جوویژن مدل JVS-22LED-A

مانیتور 22 اینچ صنعتی جوویژن مدل JVS-22LED-A

Key Features

1. HD: 1920*1080 with higher definition than the normal monitor.

2. Turn on the screen to automatically detect the resolution of the input signal in the upper right corner of the screen.

3. Clear: delicate and realistic, conveying true colors, showing the true colors.

4. Bright: The quality is improved, only for better presentation.

5. Adopt industrial screen, high brightness, high contrast.

6. High-precision standard regulated power supply, specially designed for industrial equipment, supporting 24 hours × 365 days of uninterrupted work.

7. Adopt 10bit image chip processing technology, high pixel progressive scan, fine texture.

8. Support intelligent 3D noise reduction, eliminate afterimage function, dynamic brightness, contrast color optimization technology.

9. Apply the world's leading LED driver solution to accurately restore the front-end signal, with a strong sense of reality.

10. LED has small volume, low energy consumption, zero radiation, stable image, no impact on the eyes, natural health.

11. 5 ms extremely fast response, avoiding the tailing phenomenon of images in high speed operation.

12. Using nanotechnology, the picture is more three-dimensional, transparent.

Specification
Product type Professional Monitor
Product model JVS-22LED-A
Screen size 22"
Screen type LED
Screen ratio 16:10
Brightness 250 cd/m²
Contrast ratio 1000:1
Response time 5 ms

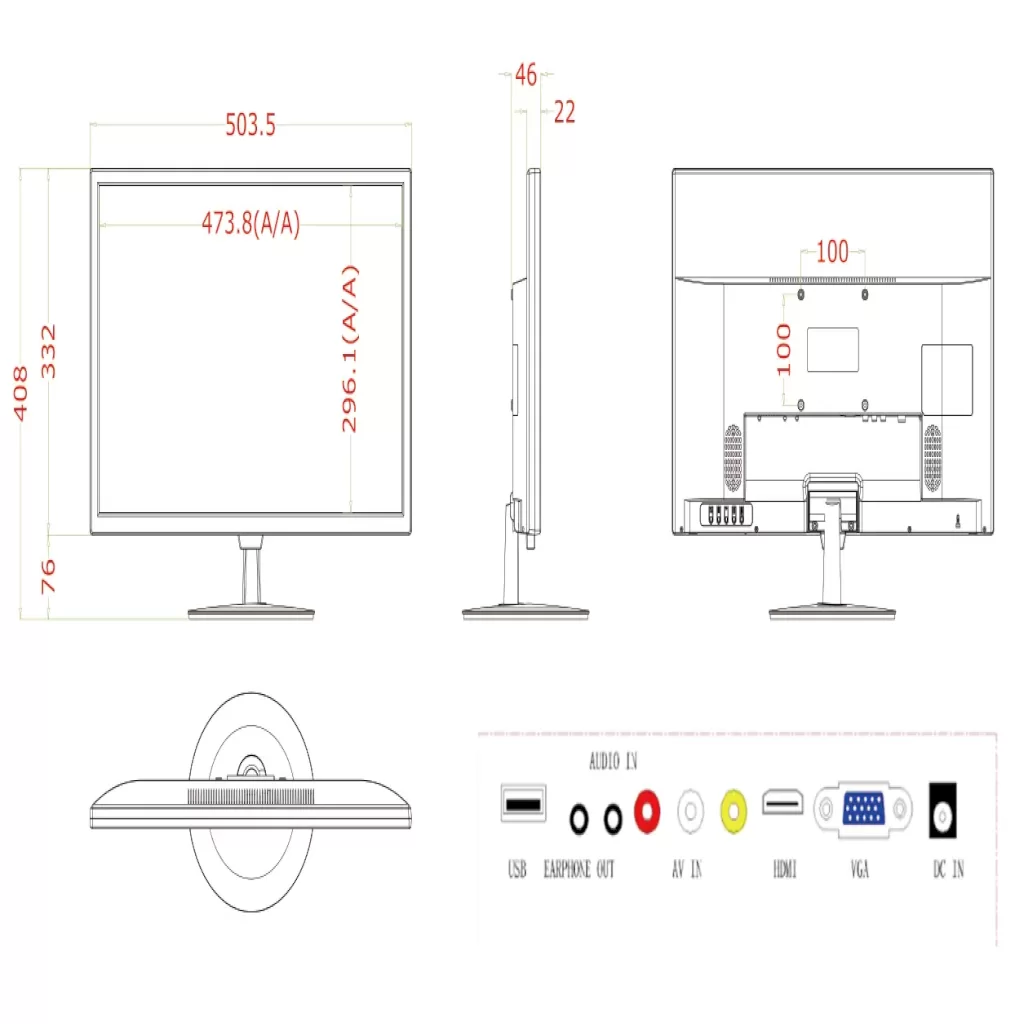

Viewing area 473.8*296.1mm
Viewing angle 160°/ 170°
Display color 16.7M
Clearness 1920*1080(Compatible with 4 k)
Control method panel infrared
Input port

USB input,audio input ,audio output,audio left channel input,audio right channel input,

AV input,HDMI input,VGA input,power

Audio output 2 stereo speakers
Head set hole audio input
Power supply mode 12V/4A
Power frequency 50/Hz
Total power 30W
Casing professional fireproof iron case
Product outer dimensions 502*333 does not include foot height (foot height 76mm)
Installation method base, wall mount
Product weight 2.4kg
Packing size 550mm*430mm*105mm
Gross weight 3.3kg
Packing size 5pcs in 1 case  560*440*540mm
Gross weight 18kg
Working environment temperature                 most suitable for 20℃
Working environment humidity       10%-90%RH
Storage temperature -20℃- 60℃
