Super Long Range Heavy-load PTZ Thermal Camera JVS-DL68-Z78

Super Long Range Heavy-load PTZ Thermal Camera JVS-DL68-Z78

Super Long Range Heavy-load PTZ Thermal Camera JVS-DL68-Z78

Specifications

Model JVS-DL68-Z78
Thermal Imaging
Detector 6th Gen Uncooled focal Plane Array VOx Detector
Detector Array 640 x 512
Field of View 20° x 15° ~ 4° x 3°
Wavelength 8 ~ 14μm
NETD 40mK (@25°C F1.0)
Lens 31 ~ 155mm Thermal Lens

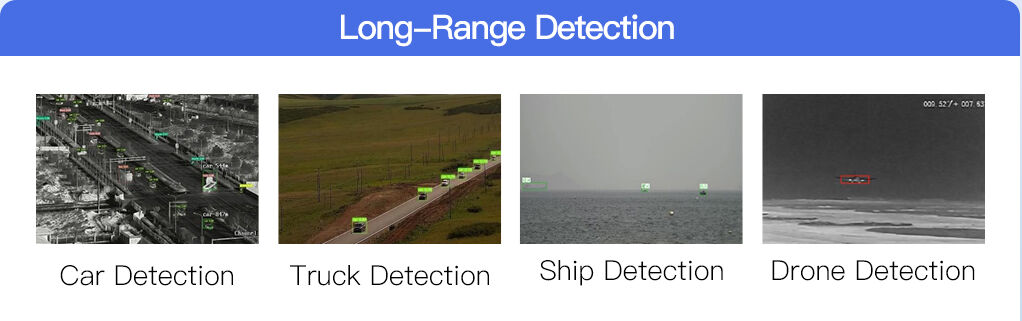

Detection Distance 13,000m to the car, 4,800m to the person.The detection distance of 2X2 meters fire source can reach 10,000m (3X3 pixels)
Recognition Distance 3,400m to the car, 1,300m to the person
Lens Control

Digital Zoom, Manual/ Auto Focus, 3A adaptive active focus algorithm,

supports multiple trigger modes, precise and high speed.

3CAM method and AS+DOE optical-mechanical structure, high infrared transmittance,

no virtual focus during zooming process, the axis is too small.

Image Enhancement:

SDE digital image enhancement technology, improve the details of the image,

 support 255-level thermal image enhancement adjustment

Pseudo-color Polarity 16 Pseudo-color images, Hot black/ Hot white two polarities
Image Parameters AGC automatic gain control, brightness, contrast adjustment
Digital Zoom

1.0~8.0x continuous zoom (Step size 0.1), support optical electronic relay zoom,

support global eagle eye diagram

Ranging Ruler Support
Dead Pixel Correction Support
Image Correction Support manual correction, Background correction, Automatic correction time interval
Bright Light Protection: Supports sun damage
Visible Imaging
Sensor Type Back-illuminated ultra-low illumination starlight CMOS
Minimum Illumination Color: 0.0005Lux;Black & White: 0.0001Lux; 0Lux (IRON)
Lens

11 ~ 860mm HD motorized zoom;Manual/auto focus, 3A adaptive active focus algorithm,

 supports multiple trigger modes, accurate and high-speed

Image Processing

Supports White balance, Electronic shutter, Frame accumulation, BLC, HLC, 2D/3D DNR,

 Electronic image stabilization, WDR, Heat wave drift suppression

Day and Night

0.4 ~ 0.75μm visible light wide spectral window and 0.8 ~ 0.95μm near-infrared spectral window.

Day and night independent double clear light window,

improve the signal-to-noise ratio of imaging light and stray light

Defog Support digital defog, Optical defog
Laser Light Source (Optional)
Technology

Patented technology of the new infrared GHT-III HD flood light super- homogenization light source.

No speckle particles and the brightness balance of all focal segments is > 92%.

Irradiation Distance 3,000 meters
Wavelength 810nm military grade infrared laser
Illumination Angle        0.5° ~ 20° DSS digital stepping illumination angle control technology
Laser Safety

Adopt ZQB safety laser beam processing patented technology,

in line with international IEC 60825 safety standards

Audio & Video
Thermal Image Resolution

1920x1080; 1280x1024; 1280x960; 1024x768; 1280x720; 704x576;

 640x512; 640x480; 400x300; 384x288; 352x240

Visible Light Resolution

2592x1520; 2560x1440; 1920x1080; 1280x1024; 1280x960; 1024x768;

 1280x720; 704x576; 640x512; 640x480; 352x288; 352x240

Video Encoding H.265/H.264/MJPEG, Support multi-stream
Video Bitrate 32Kbps ~ 16Mbps
Audio Codec G.711A / G.711U/ G726
Image Flip Left/ Right/ Up/ Down/ Diagonal
OSD Settings

Support OSD display settings of channel name, time, PTZ orientation,

 field of view angle, focal length, and support preset name setting.

Hotspot/ Smoke Detection Alarm
Alarm Threshold 255 Levels
Target Size Support range adjust and automatically identify targets of different sizes
Number of Alarm Targets 1 ~ 16
Alarm Mode

Video overlay alarm box + Data return (Or switch value) multiple alarm modes.

 The alarm is intuitive and easy to read

Front-end Algorithm

Optimized front-end fast processing algorithm, based on each frame analysis of raw heat map data.

 Alarm response 0.1Sec. No delay, No information loss

Other Alarm Support visible light fireworks detection alarm
Smart Function
Intelligent Analysis

Support Intrusion detection, Cross-border detection, Entry/exit area detection, Motion detection,

 Loitering detection, People gathering, Fast movement, Target tracking, Item leftover, Item retrieval.

Human/Vehicle target detection, Face detection and supports 16 regional settings.

Supports intrusion detection, human and vehicle screening and filtering functions.

Supports target temperature screening and filtering functions

Automatic Tracking Support single scene tracking / Multi scene tracking / Panorama tracking / Alarm linkage tracking
Intelligent Information Fusion

Support 512 AR intelligent information fusion, Support fire point,

Intelligent analysis video identification information function, Support azimuth angle,

Field angle, Focal length, Multiple information fusion

Image Fusion Support 18 dual-light fusion modes, Support picture-in-picture function
Alarm Management Support alarm snapshot upload
Protecting Mask
Material Precision cast aluminum alloy shell, stainless steel fixings, strong wind resistance
Knot Structure

Integrated multi-window design. Support for wipers (Optional plug-in small spray device,

 Self-storage, no damage to freezing, does not affect the function of the host)

Window Glass 4mm microcrystalline infrared high-efficiency anti-reflection HLIN optical glass, transmittance>98%
Surface Spraying PTA three-proof coating, Anti-seawater corrosion
Temperature Control

The overall use of thermal balance design + wide temperature electronic and optoelectronic devices,

 built-in heating, heat dissipation and other temperature control components,

can work in low and high temperature environments

Physical Interface Aviation waterproof plug
PTZ
Range Pan 0°~360°, Tilt -45° ~ +45°
Rotational Speed

Horizontal 0.01°/Sec ~ 30°/Sec, Vertical 0.01°/S ~ 15°/Sec,

Support lens focal length speed adaptive function

Accuracy ±0.1°
Preset Cruise 3000 presets, support 16 cruise routes, each can support 256 presets
Watch

Preset position/pattern scan/cruise scan/vertical scan/frame scan/panorama scan

/apple peel scan/horizontal fan scan line scan

Zoom Support 3D frame selection zoom
Memory

Support (Can restore the position before power-off, preset position status,

 cruise status, line scan status)

Orientation

Support angle query/real-time return, positioning;

Support lens field of view return and positioning

Zero-point Correction Support the north zero-point remote correction function

Network
Interface 1x RJ 45, 10/100 Base-T adaptive
Protocols HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP, ONVIF, GB28181
Development Easy to use SDK available
Optical Network                      Optional built-in optical fiber module, Single-mode optical fiber output, Improve anti-interference
General
Power Supply AC/DC 24V, Anti-reverse polarity protection
Power Consumption ≤180W
Working Temperature -40°C ~ +60°C
Storage Temperature -45°C ~ +70°C
Humidity <90%Rh
Lightning Protection Built-in surge protection 6000V
Anti-salt Spray PH value of 6.5 to 7.2, continuous spraying for 96 hours
Ingress Protection IP66
Weight 45Kg (Including the mount)
