دوربین دار بسته تحت شبکه تشخیص آتش جوویژن Fire Prevention Thermal Camera JVS-FPT-DL18

دوربین دار بسته تحت شبکه تشخیص آتش جوویژن Fire Prevention Thermal Camera JVS-FPT-DL18

دوربین دار بسته تحت شبکه تشخیص آتش جوویژن Fire Prevention Thermal Camera JVS-FPT-DL18

Key Features

• Resolution 256x192  VOX Uncooled Thermal Imager

• Over-temperature Warning, automatic alarm

• Built-in Speaker, Support voice broadcast

• Support 10 detection areas, each area can set the area name, emissivity, distance, alarm temperature information of the detection object separately

• Real-time monitoring, timely and accurate detection of fire conditions and warnings, providing quick and effective guidance for fire fighting operations

• Multipel languages,Support VMS

• Support HDMI output (No need PC)

Specifications

Model JVS-FPT-DL18
Display
Sensor Image Sensor:1/2.9" CMOS SensorThermal Sensor:Uncooled VOX Sensor
Video Resolution Camera:1920x1080Thermal:704x576
Effective Pixels 2.0MP
Compression Standard H.265/H.264
Frame Rate Default 25fps, MAX 30 fps
Bit Rate 204 Kbps~8Mbps adjustable
Camera
Lens 6mm,M12
 FOV H: 53.7°, V:28.8° ,D:62.0°
Function
Exposure Control Support
White Balance Auto
Image Enhancement BLC/HLC/3D DNR/DWDR/Defog
Advanced OSD

Support OSD large font function, OSD and time to set the position separately

,8 lines x 48 characters

Privacy Mask Support 8 Rectangle Areas
Motion Detection Support
Image Setting Rotate, Saturation, Brightness, Contrast, Sharpness
Day and night function Full color, black and white is not supported
Intelligent Analysis Temperature  Alarm ,Region Intrusion, Line Crossing,
Alarm Method  Email Alarm, Client Alarm, Voice Alarm
Remote Operation System , Audio and video , Image , Alarm , Network management,Intelligent Analysis

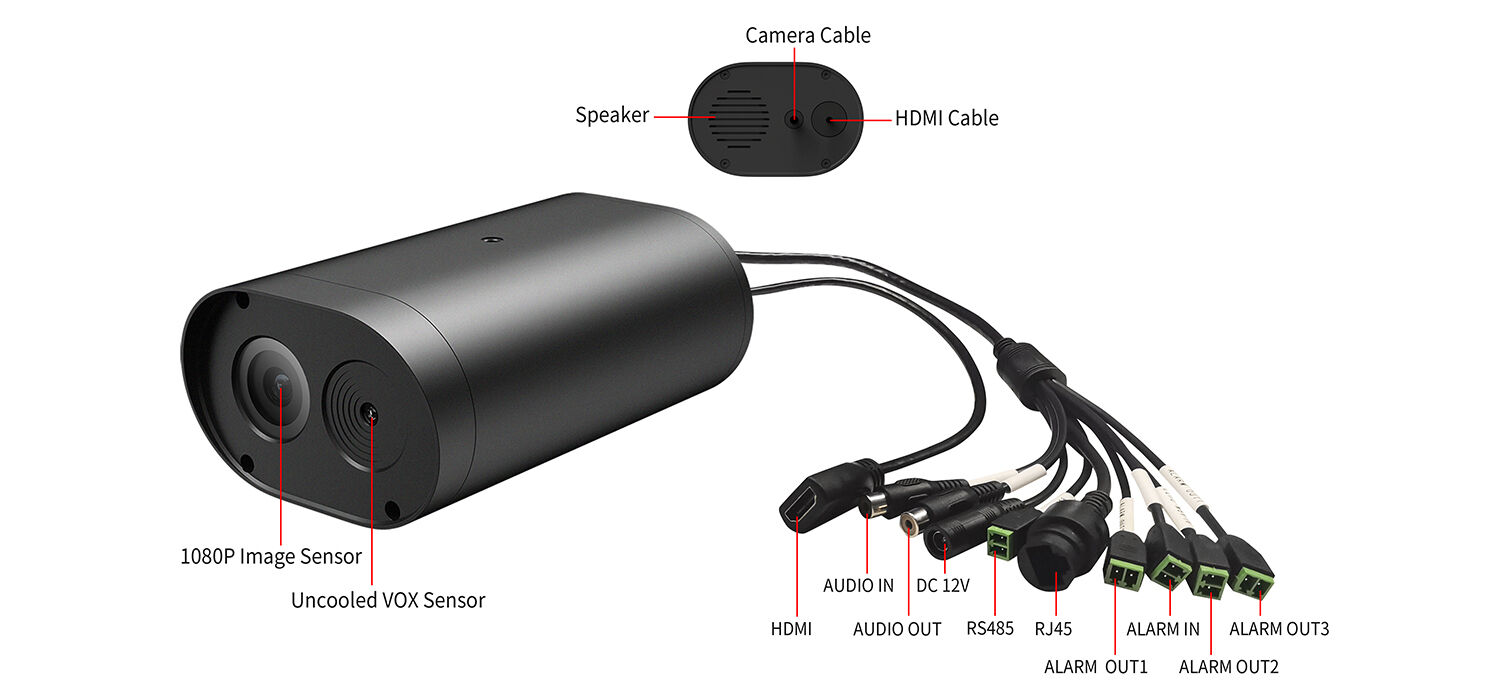

Expansion Interface Support Audio Input, RS485, HDMI Output, 1 Alarm Input, 3 Alarm Output
Temperature  Alarm
Temperature Range -10℃~+550℃
Thermal Focus 3.2mm
Thermal 256x192
 FOV 56x42
Temperature Area 10 Detection Areas
Temperature Distance 2~40m
Over-Temperature Alarm                Support
Network
Ethernet 10M / 100M Ethernet ,1 RJ45
Stream 2x Streams(Camera)
Protocols HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,DHCP,DNS
ONVIF ONVIF Standard
Network Transmission CloudSEE 2.0
Browser IE8+, Chrome18+, Firefox5.0+, Safari5.02+
User Up to 13 Users
App Support iOS/Android
General
Power Supply DC12V
Power Consumption <5W
Working Temperature -20°C ~ 60°C
Working Humidity 10% ~ 90% Rh
Material Metal
Dimensions (WxHxD) 115x75x207mm)
Weight 960g
Waterproof IP20



Temperature Accuracy

Distance Target Target Size Temperature Accuracy
2 ≥1.66cm*1.66cm ±1℃
5 ≥4.15cm*4.15cm ±2℃
10 ≥8.30cm*8.30cm ±3℃
20 ≥16.6cm*16.6cm ±3℃
30 ≥24.9cm*24.9cm ±3℃
40 ≥33.2cmx33.2cm ±3℃

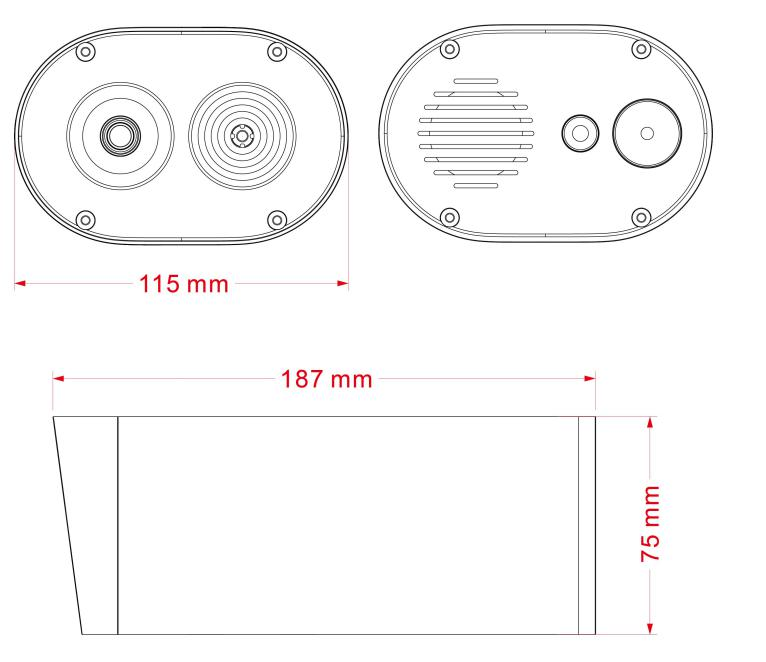

Dimension(mm)

JVS-FPT-DL18

فایل ضمیمه: دانلود فایل
