دوربین مدار بسته، دوربین بالت تحت شبکه JOVISION فول کالر حرفه ای مدل 5MP Full Color PoE IP Camera (ColorNext Pro Series) JVS-N519-PWL
- برند: جوویژن
- کد: 4504729
5.0 Megapixel 2560x1792 Resolution.
Full Color Night Vision.
Equipped with VQC Technology.
F1.0 Aperture.
18x LEDs and Support Adaptive Dimming.
Built-in Mic and Speaker.
IEEE802.3af PoE.
Ingress Protection IP67.
Full Color Night Vision.
Equipped with VQC Technology.
F1.0 Aperture.
18x LEDs and Support Adaptive Dimming.
Built-in Mic and Speaker.
IEEE802.3af PoE.
Ingress Protection IP67.
دوربین مدار بسته، دوربین بالت تحت شبکه JOVISION فول کالر حرفه ای مدل 5MP Full Color PoE IP Camera (ColorNext Pro Series) JVS-N519-PWL
دوربین بالت 5 مگا پیکسل فول کالر جوویژن
دارای میکروفون و اسپیکر فون
پی او ای
کاور با استاندارد IP67
Specifications
CAMERA | |
Image Sensor | 1/1.79" Progressive CMOS |
Min. Illumination | IR ON 0 Lux |
Day & Night | IR cut filter with auto switch |
Lens | 4mm, 6mm |
FOV |
4mm: H: 88.9°; V: 47.3°; D:103.7° 6mm: H: 57.1°; V: 30.4°; D: 66.3° |
LEDs | 18 Pcs Warm LED |
LED Range | Up to 65m |
LED Adjustment | Adaptive Dimming |
IMAGE | |
Max Resolution | 2560x1792 |
Frame Rate | 25fps |
Video Compression | H.265/H.264 |
Bit Rate (CBR/VBR) |
Main Stream: 256 ~ 8192Kbps Sub Stream: 68 ~ 1024Kbps |
Audio Compression | G.711a / G.711u |
Image Setting | Saturation, Brightness, Contrast, Sharpness |
Image Enhancement | BLC/HLC/3D DNR/Defog |
White Balance | Auto |
Privacy Mask | Support 8 Rectangle Areas |
DWDR | Support |
NETWORK | |
Network Protocols | HTTP, TCP/IP, UDP/IP, ICMP, RTP, UDP, RTCP, SMTP, DHCP, DNS |
Interface Protocols | Standard ONVIF, GB28181, CloudSEE |
Auto IP Configuration | Support |
Alarm Trigger | Motion Detection, Region Intrusion, Line Crossing |
RTSP Video | Standard RFC2326, QuickTime/VLC Player etc. |
Security | User security authentication, Reset, Hardware Watch Dog |
Web Language | Chinese, English |
Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
INTERFACE | |
Ethernet | 1 RJ45 10M / 100M Ethernet |
Audio | Built-in Mic and Speaker |
SD Card | Not Support |
Reset Button | Not Support |
GENERAL | |
Power Supply | DC12V/2A, PoE IEEE 802.3af |
Power Consumption | <3W (During day); <13W (At night) |
Working Temperature | -20°C ~ 60°C |
Working Humidity | 10% ~ 90% Rh Non-Condensation |

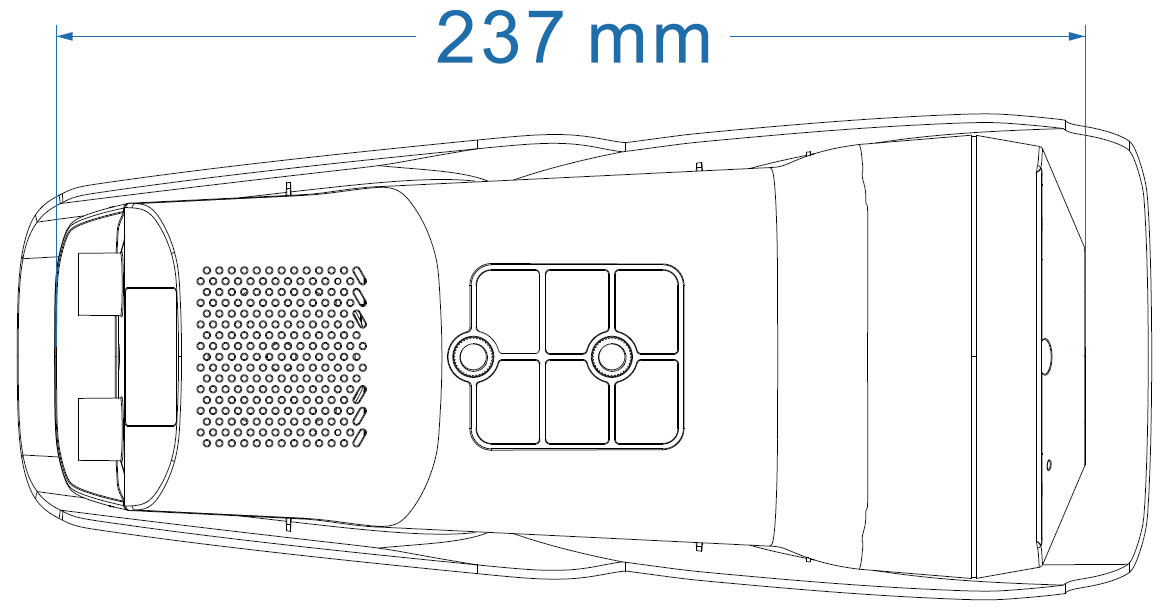

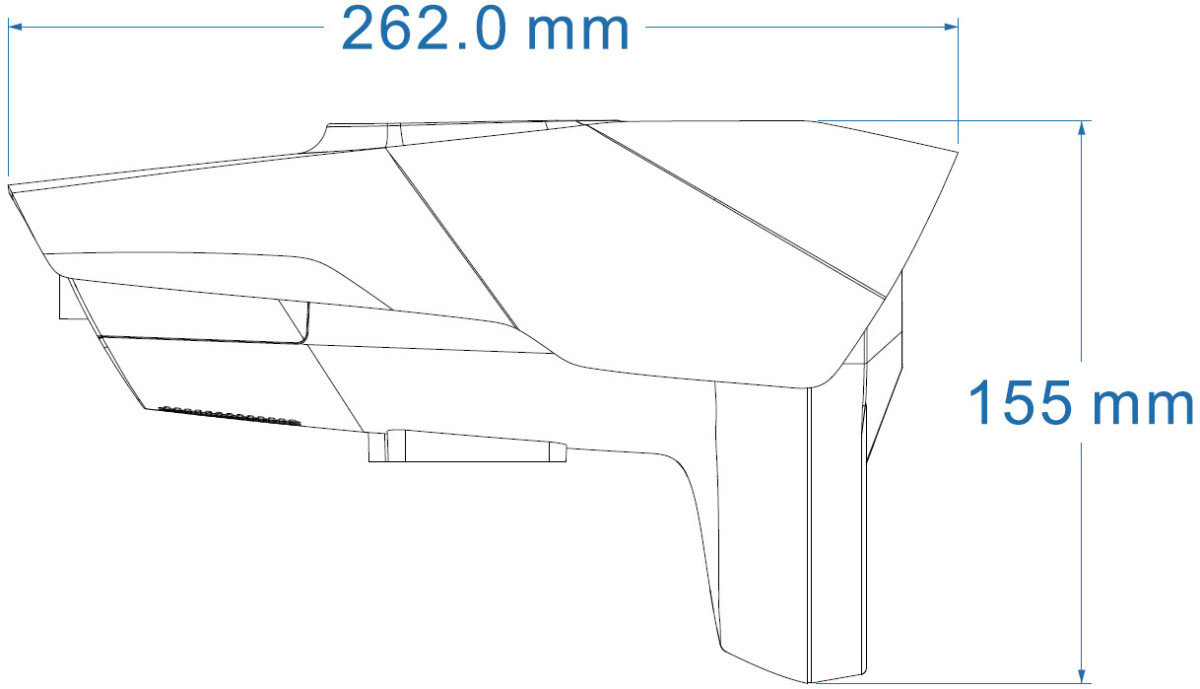

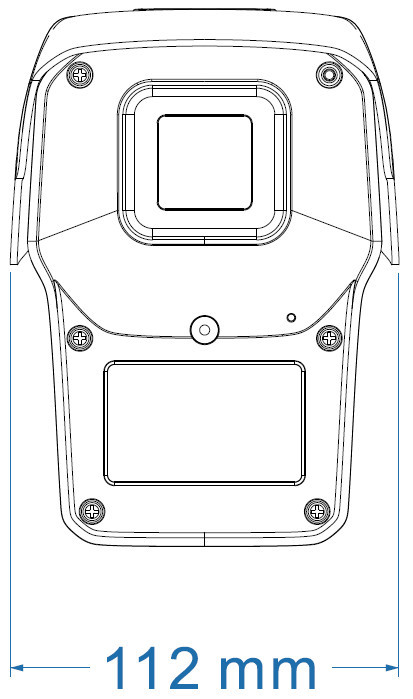

Dimensions | 262x112x155(mm) |
Product Weight | ≤700g |
Color / Material | Front Shell: Black ADC12; Rear Shell: White PC |
Installation | Wall, Ceiling |
