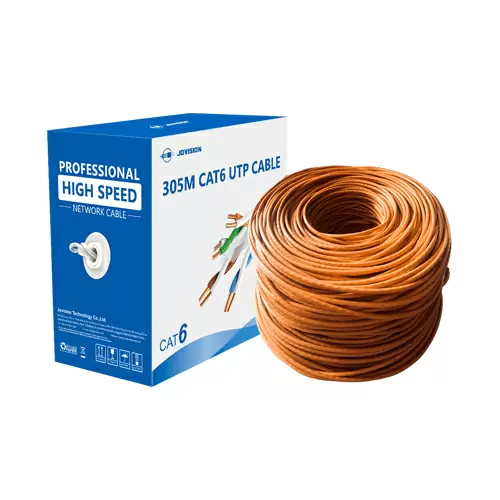

کابل کت سیکس برند جوویژن JOVISION CAT 6 NETWORK CABLE JVS-NL6A57

در صورت که نیاز به مشاوره و خرید یا نصب در زمینه تلفن سانترال و یا دوربین مدار بسته و یا سوئیچ شبکه را دارید لطفا با شمارهای 02188354375 و یا 09121988790 تماس بفرمایید.

Features

• Provide faster and more reliable data transfers.

• Improved performance and reduced signal degradation.

• Minimize crosstalk and interference for better signal quality.

• PVC sheath for added protection from moisture, dust, and other environmental factors.

• Specifications

  Conductor
  Material	CCA (Copper content 8%)
  Diameter	0.57 mm ± 0.01 mm
  American Wire Gauge	23AWG
  Insulation
  Material	HDPE
  Min. Average Thickness	0.18mm
  Diameter	0.89mm±0.1mm
  Color (4 Pairs)	Blue, White/Blue; Orange, White/Orange; Green, White/Green; Brown, White/Brown
  Separator
  Material	PE
  Specification	Translucent 4.5 × 0.4 mm
  Sheath
  Material	PVC
  Min. Average Thickness	0.8mm
  Diameter	6mm±0.20mm
  Color	Orange
  Electrical
  Max. DC Resistance of a Single Conductor	18.5Ω/100m
  Mechanical
  Tensile Strength	Sheath≥13.5 MPa, insulation≥16 MPa
  Elongation at Break	Sheath≥150%, insulation≥300%
  Installation Bending Radius	>8 times of outer cable diameter
  Conductor Elongation at Break	≥15%
  Environmental
  Operation Temperature	–20°C to +60°C (–4°F to 140°F)
  Installation Temperature	0°C to +50°C (32°F to 122°F)
  Storage Temperature and Humidity	–10°C to +40°C (14°F to 104°F), <60% (RH)
  Packaging
  Length	305.0 m (1000.66 ft) ± 1.5 m (4.92 ft)
  Packaging method	2 boxes/protective box (1 pack of 2)
  Packaging Dimensions	390x390x240mm
  Packaging Method	500x400x410mm
  Net Weight	7.8kg±0.4kg
  Gross Weight	8.8kg±0.4kg
