سوییچ 24 پورت پی او ای با دو آپلینک جوویژن 24Port PoE Network Switch JVS-S26-24P-360W

در صورت که نیاز به مشاوره و خرید یا نصب در زمینه تلفن سانترال و یا دوربین مدار بسته و یا سوئیچ شبکه را دارید لطفا با شمارهای 02188354375 و یا 09121988790 تماس بفرمایید.

Product Description

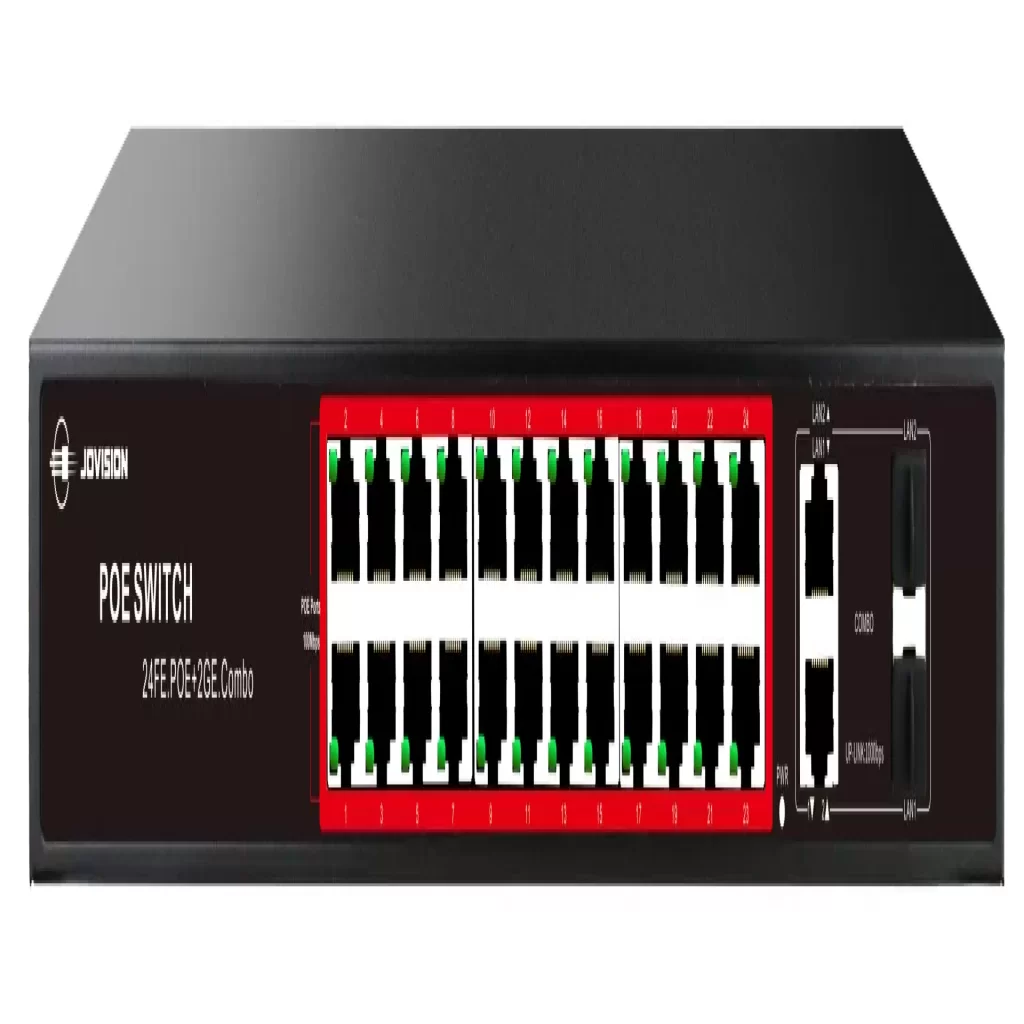

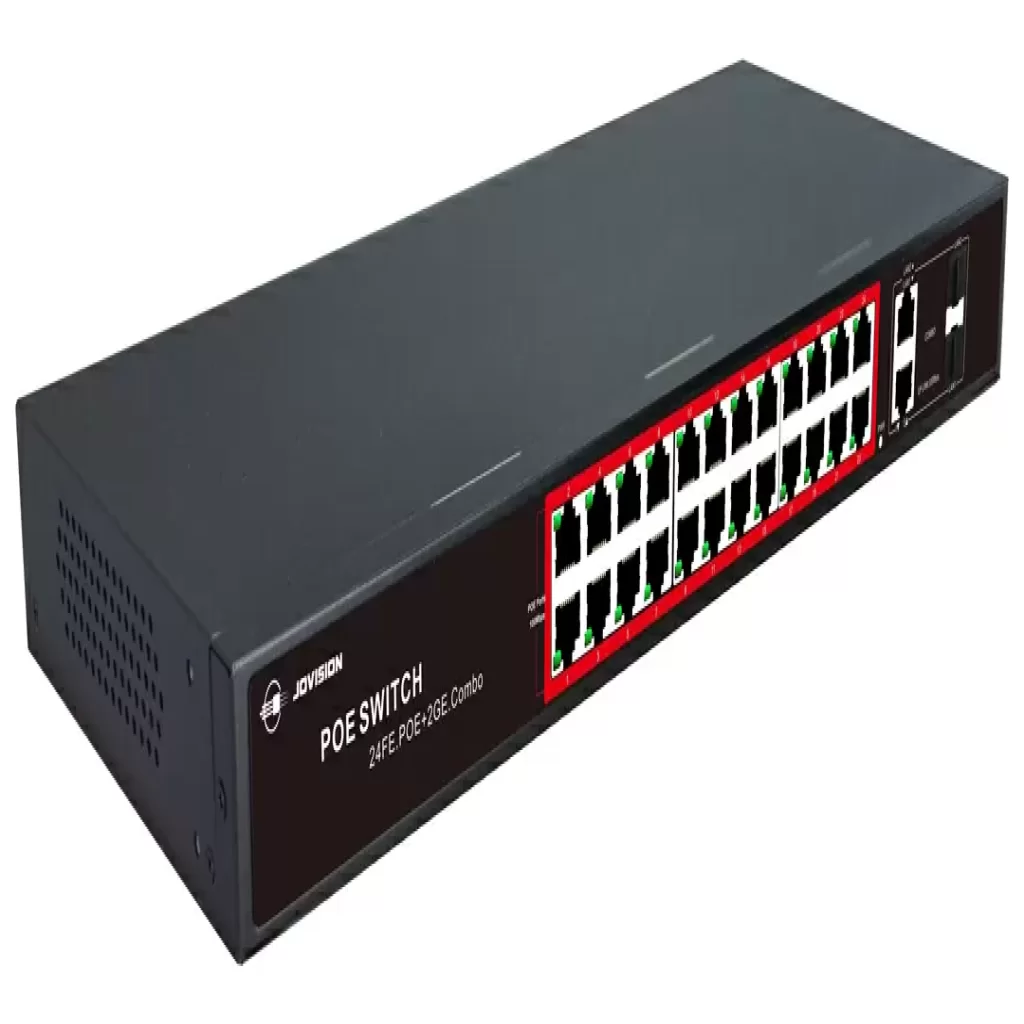

• JVS-S26-24P-360W hybrid standard PoE power supply switch provides 16 10/100m adaptive RJ45 ports, 2 10/100/1000M adaptive RJ45 ports, and 2 independent SFP expansion slot. Ports 1 to 24 provide PoE power supply and can serve as Ethernet power supply devices.

• All POE ports can automatically detect and identify electrical devices that comply with IEEE 802.3af/at standards and supply power to them through network cables.

• This model supports intelligent AI detection. When the monitoring device crashes or the network is abnormally interrupted, the AI algorithm is used to determine the intelligent restart of the POE port device.

• Automatic network optimization: automatically judge the status of network signal transmission, intelligent switch remote mode, long distance transmission is stable without disconnection.

Product Characteristics

• Comply with IEEE 802.3U And IEEE 802.3U Fast Ethernet protocol standards;

• Support IEEE 802.3AF/AT standard, compatible with PD that supports IEEE 802.3AF/AT

• Support normal switch/automatic AI detection + port isolation (combined function) two mode

• Provides 16 10/100m adaptive PoE power ports, 2 uplink 10/100/1000M adaptive RJ45 ports, and 2 independent SFP port

• All ports support the Auto MDI/MDI-X function

• Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control

• All ports have wire-speed forwarding capability

• Supports MAC address self-learning and aging

• Full metal casing, full load 360W

• Plug and play



Software Specifications

• Complies with IEEE 802.3 Ethernet and IEEE 802.3u Fast Ethernet protocol standards

• Compliant with IEEE 802.3af/at standards for receiving devices (PD)

• Compatible with certified non-standard electrical receiving equipment (PD)

• Store and forward

• MAC automatic learning and aging

• IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control
