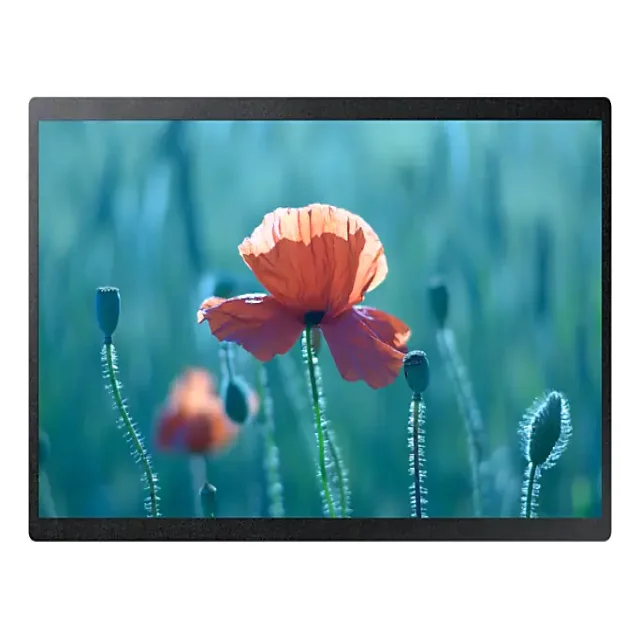

مانیتور صنعتی 24 اینچ سامسونگ مدل SAMSUNG MONITOR QB24R-B

  • کد: 5353674
مانیتور صنعتی 24 اینچ سامسونگ مدل SAMSUNG MONITOR QB24R-B
Crisp and visible content
Slim design
Powerful content playback

مانیتور صنعتی 24 اینچ سامسونگ مدل SAMSUNG MONITOR QB24R-B



در صورت که نیاز به مشاوره و خرید یا نصب در زمینه تلفن سانترال و یا دوربین مدار بسته و یا سوئیچ شبکه را دارید لطفا با شمارهای 02188354375 و یا 09121988790 تماس بفرمایید.





Enhanced communication in a compact display

Samsung's QB24R-B small display enables personalized and impactful communication through its compact and versatile design. An all-in-one solution designed for professional use, the QB24R-B improves the operational efficiency of content, while also ensuring reliable performance for any business use.

Enhanced communication in a compact display

Crisp and visible content

Samsung’s QB24R-B is enhanced by a non-glare panel which always delivers clear images and text regardless of any ambient light. This essential feature is supported by reliable 16/7 operation, suitable for professional use.

Crisp and visible content

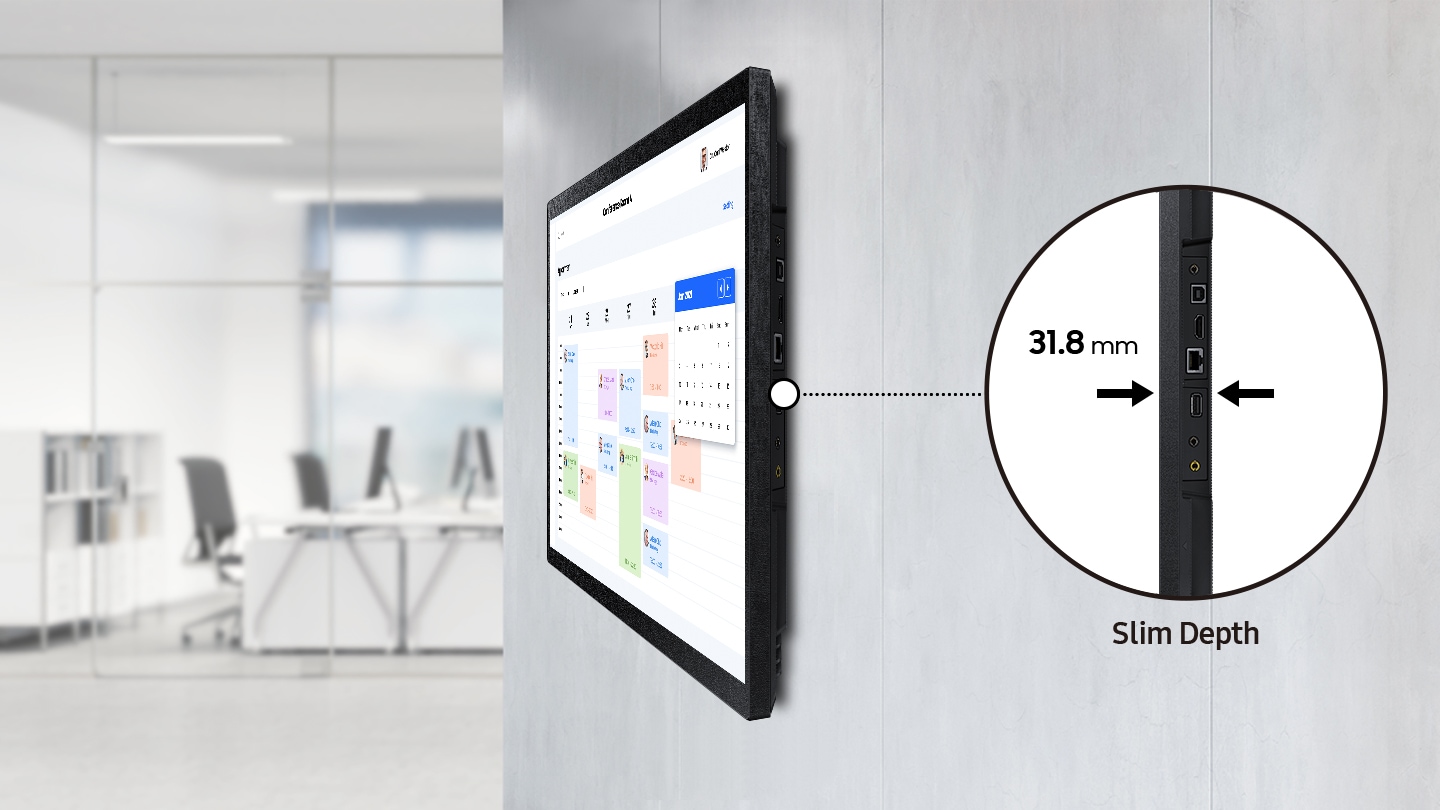

Slim design

The compact and slim design of the QB24R-B allows for efficient space utilization, even in compact locations. A sleek rear design makes the display optimal for wall mounting while the connectivity, content play and device controls are easy to operate.

Slim design

Powerful content playback

With an embedded MagicINFO S player, backed by TIZEN, the QB24R-B allows efficient and seamless playback without any external media player. SSSP also allows easy content development through reinforced compatibility with multiple web formats.

Powerful content playback

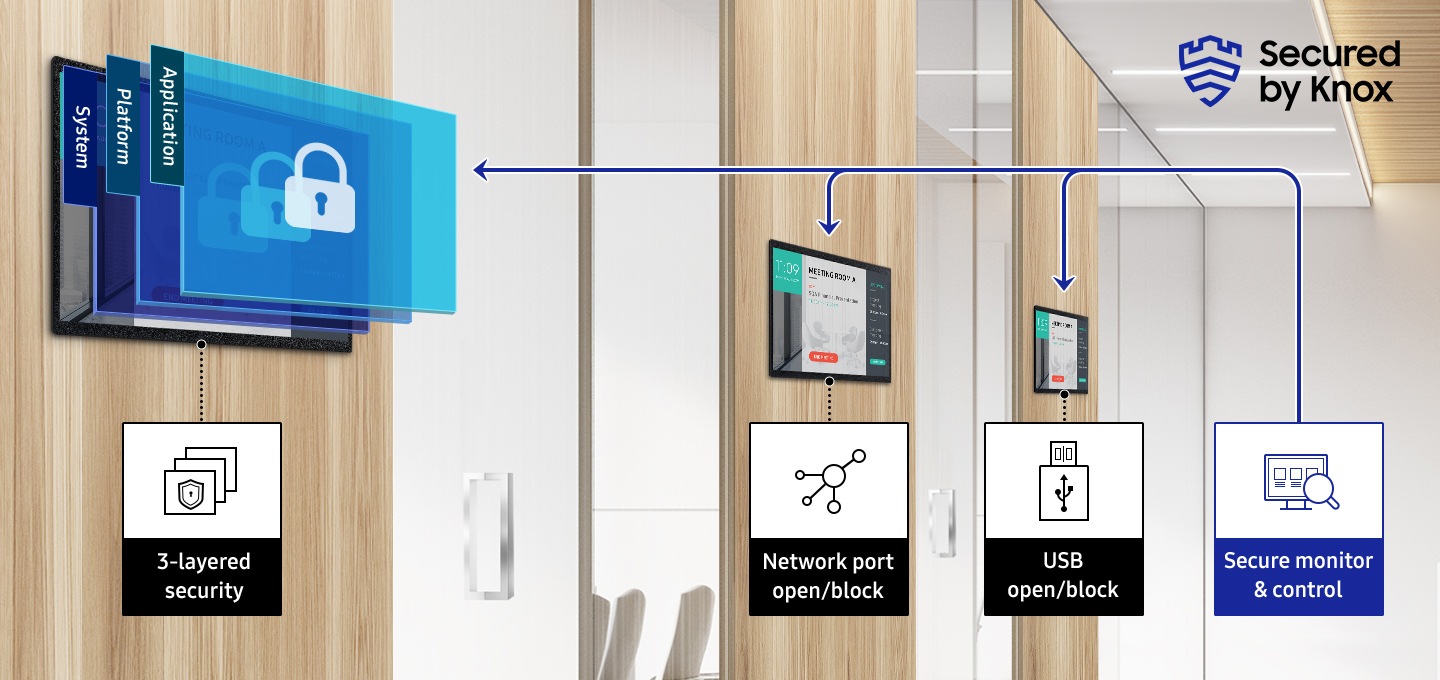

Comprehensive security setup

The powerful Knox security system provides rigid, three-layer security, offering airtight protection at the application, platform and system level, while restricting access to content and hardware. In addition, remote control of the network and USB ports prevents any unauthorized access.

Comprehensive security setup

Convenient, clean display control

With center IR, each display receives IR signals direct to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cabling extension. Built-in Wi-Fi allows wireless remote management for both content and display.

Convenient, clean display control

Safe operation, reliable performance

The QB24R-B is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, IP5x rating ensures durable performance even in dusty environments.

Safe operation, reliable performance


Specifications

Display

  • Diagonal Size23.8"
  •
  • Panel TypeADS
  •
  • Resolution1,920 x 1,080
  •
  • Pixel Pitch (HxV, mm)0.2745 x 0.2745 mm
  •
  • Brightness (Typ)250 nit
  •
  • Contrast Ratio1,000:1
  •
  • Viewing Angle (H/V)178/178
  •
  • Response Time14ms
  •
  • Color Gamut72%
  •
  • Glass Haze25%
  •
  • H-Scanning Frequency48~ 75 Hz
  •
  • Maximum Pixel Frequency594MHz
  •
  • V-Scanning Frequency56 ~ 84.5kHz
  •
  • Contrast Ratio (Dynamic)Mega
  •
  • Operation Time Support16/7

Connectivity

  • HDMI In1
  •
  • DP InNo
  •
  • Version of HDMI1.4
  •
  • Version of DPNo
  •
  • Version of HDCP2.2
  •
  • USB1
  •
  • IR InYes
  •
  • Audio InNo
  •
  • Audio OutStereo Mini Jack
  •
  • RS232 InYes
  •
  • RJ45 InYes
  •
  • WiFiYes
  •
  • 3G DongleNo

Power

  • Power SupplyAC100-240V 50/60Hz
  •
  • Power Consumption (On Mode, W)38.5 W
  •
  • Power Consumption (Sleep Mode, W)0.5 W

Dimension

  • Set Dimension (WxHxD, mm)547.9 x 334.4 x 31.8 mm
  •
  • Package Dimension (WxHxD, mm)620 x 419 x 122 mm

Weight

  • Set Weight3.0 kg
  •
  • Package Weight4.1 kg

Operation Conditions

  • Temperature0 °C~ 40 °C
  •
  • Humidity10 ~ 80%, non-condensing

Mechanical Specification

  • VESA Mount (mm)100 x 100 mm
  •
  • Bezel Width (mm)UD : 17.9 / LR : 9.4
  •
  • Frame MaterialNon-Glossy

Optional Feature

  • MountNo
  •
  • StandNo

SoC

  • OS VersionTizen 4.0
  •
  • Flash Memory Size8GB

Certification and Compliance

  • EMCClass B
  •
  • Safety60950-1, 62368-1
