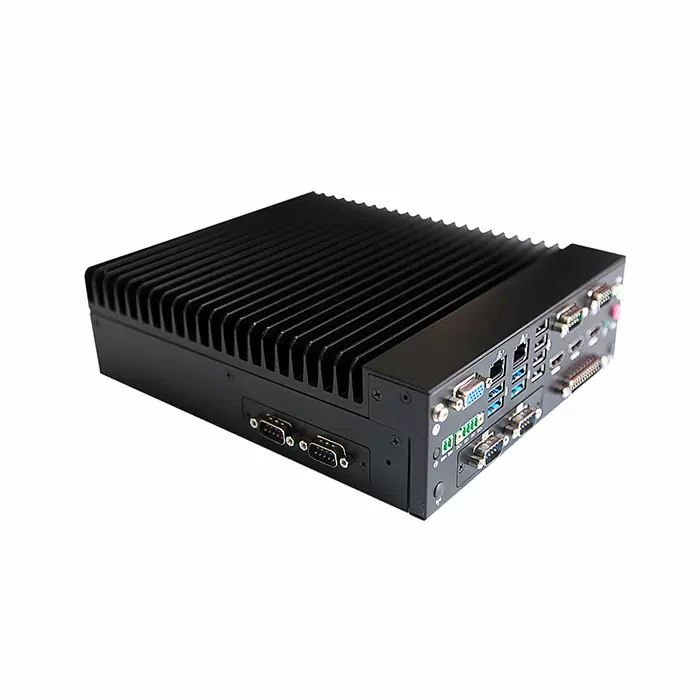

Intel® Core™ i5 AI Box JVS-B700-F
- برند: جوویژن
- کد: 4455115
• The whole device is sealed and fan-less design, integrating AI calculation and industrial control characteristics.
• Graphene heat dissipation system to achieve higher heat dissipation efficiency
• The new 11th Gen Intel® Core™ Tiger Lak
Intel® Core™ i5 AI Box JVS-B700-F
در صورت که نیاز به مشاوره و خرید یا نصب در زمینه تلفن سانترال و یا دوربین مدار بسته و یا شبکه را دارید لطفا با شمارهای 02188354375 و یا 09121988790 تماس بفرمایید.
Key Features
• The whole device is sealed and fan-less design, integrating AI calculation and industrial control characteristics.
• Graphene heat dissipation system to achieve higher heat dissipation efficiency
• The new 11th Gen Intel® Core™ Tiger Lake embedded CPU provides AI computing ability to meet the requirements of AI edge computing application scenarios

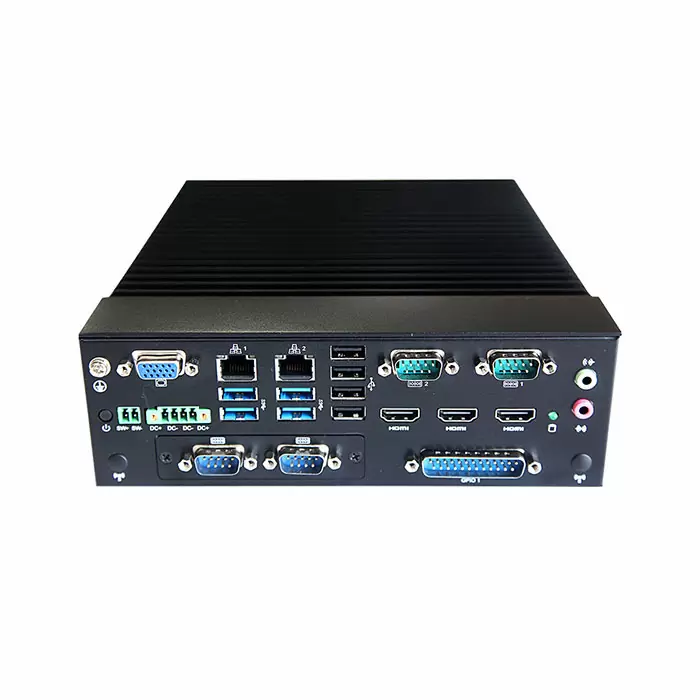

• 2x gigabit network ports and 6x serial ports (protected by isolation, lightning surge, and ESD) to ensure the reliable and stable operation of the system in complex environments
• The device has low power consumption, excellent performance, strong environmental adaptability, widely used in machine vision, highway, lane control, mechanical testing equipment, intelligent transportation, intelligent factory, intelligent power control, CNC equipment manufacturing; It can also be applied to VR, video surveillance, AI and deep learning.
| Model | AI Box |
| System | |
| CPU | 11th Gen Intel® Core™ Tiger Lake IoT Processor |
|
I3-1115G4 3.0GHz-4.1GHz 2Core 28W I5-1135G7 2.4GHz-4.2GHz 4Core 28W I7-1165G7 2.8GHz-4.7GHz 4Core 28W |
|
| Memory | Onboard SDRAM LPDDR4 8 ~ 24GB |
| Storage |
1x 2.5-inch shock-absorption hard disk installation position, Standard configuration 2x M.2 2280 NVMe port, 1x mSATA port |
| Extension |
1x Mini-PCIe expansion slot (with 1x SIM card slot), 2x M.2 Standard configuration (optional 2x Mini-PCIe, Co-Lay) |
| System support | Windows 10 64bit, Ubuntu, Red Hat |
| Display | 3x HDMI + VGA (Internal reserved eDP port, either VGA or eDP) |
| Wireless | Wi-Fi |
| Network port | 2x 10/100/1000Mbps RJ45 Ethernet Ports |
| General | |
| Power Supply | The adapter supports 9V to 36V DC wide input voltage |
| Working Temperature | -10°C ~ 60°C |
| Working Humidity | 5% ~ 90% (Rh Non-Condensing) |

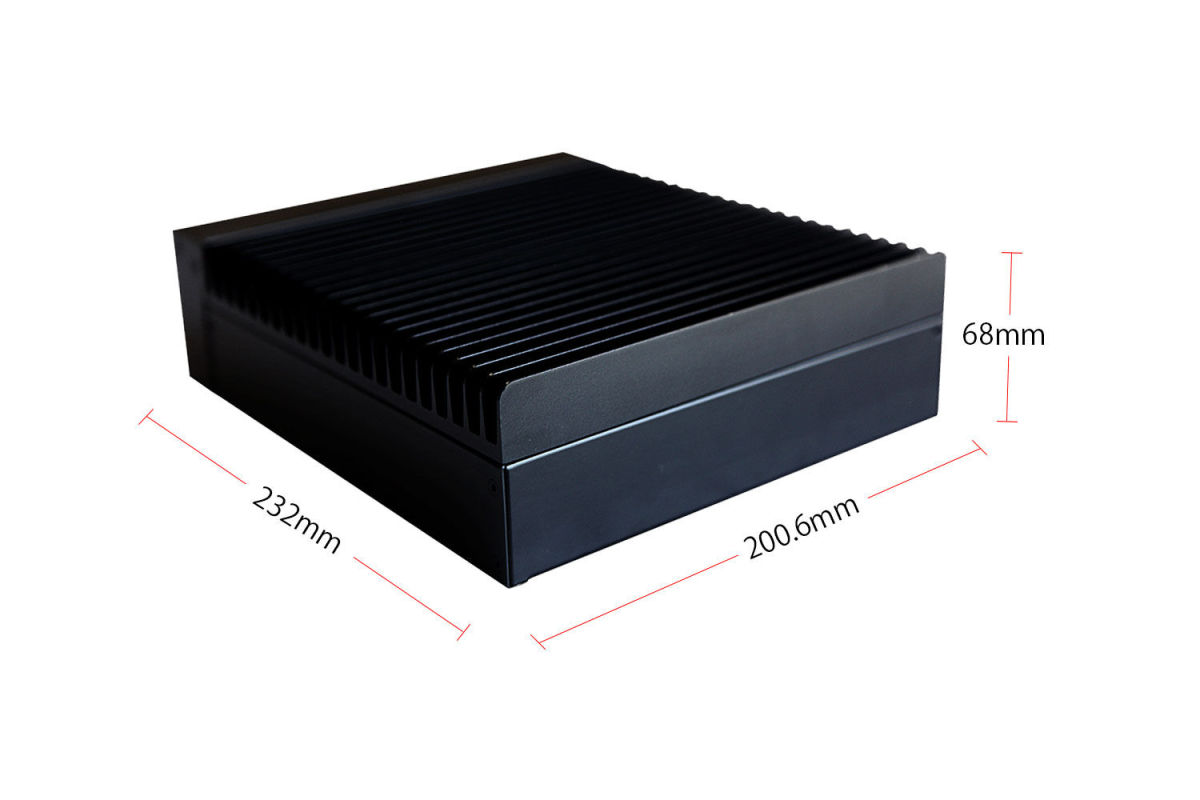

| Dimensions | 200.6 x 232 x 68mm (Without Expansion)228.2 x 232 x 73mm (With wall hanging bar) |
Dimension(mm)
