Camera

Image Sensor

1/ 2.9” CMOS Sensor

Max Resolution

1920 x 1080

Effective Pixels

2.0MP

Compression Standard

H.265&H.264

Framerate

20fps

Bitrate

128Kbps~1024bps

Illumination

0Lux (IR ON)

Lens

Lens

4mm / M12 Interface

Viewing Angle

H 79°, V 42°, D: 93°

IR Light

2x Array IR LEDs

IR Distance

 Up to 30m.

Full Color

 2x White LEDs

Full Color Distance

Up to 20m

Function

Privacy Masking

Supports 4 Zone masking

Exposure Mode

Auto

Automatic Gain Control

Auto

White Balance

Auto

Image Enhancement

AGC/ AWB/ AEC/ 3D DNR

Motion Detection

Support

Two-Way Talk

Support

Remote Control

System Management, Audio/Video Management, Image Management,

Storage Management, Alarm Management, Network Management.

Light & Sound Alarm

Support

Triggered Events To

Client, Email, Phone

Smart Functions

Intrusion Detection, People Counting, Human Detection, Line Crossing

Interface

Audio In & Out

Built-in Mic and Speaker

SD Card

Support Max. 128GB

Reset Switch

Support

Network

Ethernet

10M/100M Ethernet, RJ45 Port

Wi-Fi

Wi-Fi (IEEE802.11b/g/n), 2.4Ghz

Stream

Dual stream

Protocols

TCP/IP, ICMP, UDP, SMTP, DHCP, DNS, PPPOE

Network Transmission

CloudSEE P2P Transmission Protocol

General

Power Supply

DC12V/1A

Consumption

5W

Working Temperature

-20°C~60°C

Working Humidity

10%~93% Rh

Color / Material

White / ABS + PC, Aluminum Alloy

Installation

Ceiling/ Bracket /Mounting

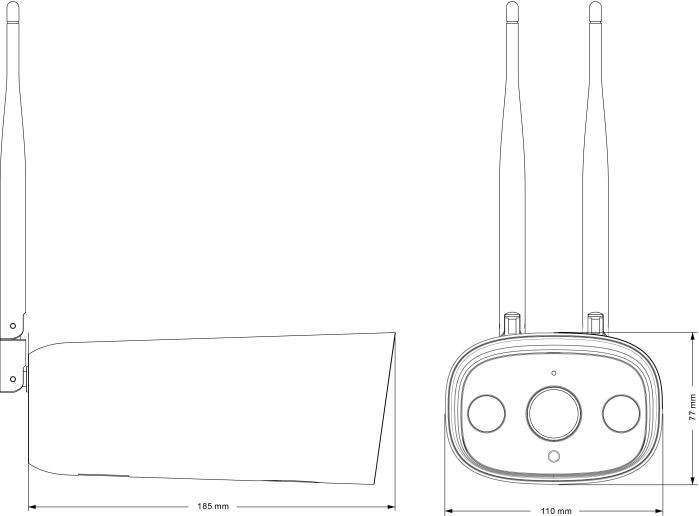

Dimensions

77x110x185mm

Weight

510g
