دوربین مدار بسته جوویژن مدل JVS-N837-UDL
- برند: جوویژن
- کد: 6097150
8.0MP Full-Color Video & Audio PoE Network Camera
8.0MP Full-Color Video & Audio PoE Network Camera JVS-N837-UDL
Features
-
Full-Color with Dual Smart Illumination
-
Agi Sense Technology for accurate Humanoid Detection and Vehicle Detection
-
Built-in Mic and Speaker
-
AI-ISP for excellent video performance
-
Equipped With unique VQC (Video Quality Catalyst) Technology
-
Integrated with unique SAFE function
Specifications
| Video | |
| Image Sensor | 1/2.82" CMOS Sensor |
| Max. Resolution | 3840x2160 |
| Effective Pixels | 8.0MP |
| Compression Standard | H.264/H.265 |
| Framerate | 25fps |
| Bitrate |
Main Stream: 256Kbps ~ 10Mbps Sub Stream: 68Kbps ~ 3072Kbps |
| SNR (dB) | 49.3dB |
| Min. Illumination | 0Lux (light ON) |
| Lens | |
| Interface Type | M12 |
| Lens | 2.8mm |
| FOV | 2.8mm:H 104.3°, V 57.9°, D 121.8° |
| Function | |
| Audio Codec | G.711U/G.711A (Default) |
| Exposure Control | Auto, HLC, BLC |
| White Balance | Auto |
| Gain Control | Auto |
| OSD Information Setting | Large font OSD, OSD flashing on Alarm, OSD Position Settings |
| SNTP | Support |
| Schedule Reboot | Support |
| Smart Defog | Support |
| Motion Detection | Support Humanoid Detection & Vehicle Detection |
| Image Setting | Support Saturation, Brightness, Contrast, Sharpness adjustment |
| Image Style | Standard, Soft, Transparent |
| Day and Night Function | Auto, Always Black & White, Always Color, Scheduled Color |
| Privacy Mask | Support up 8 areas |
| Night Vision Optimization | Support |
| WDR | Support |
| Screen Settings | Screen mirroring, Screen flipping |
| IP Adaptation | Support automatic adaptation of IP address (Optional) |
| Alarm Method | Email Alarm, Client Alarm |
| Remote Operation | System, Audio and Video, Image, Alarm, Network management |
| Audio Function | Built-in Mic x2 and Speaker x1 |
| VQC Technology | Support |
| SAFE Function | Support |
| Network | |
| Ethernet | 10/100Mbps Ethernet |
| Stream | 2x Streams |
| Network Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| ONVIF | Standard ONVIF |
| Network Transmission | CloudSEE 2.0 |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Lights | 4x White LEDs + 4x IR LEDs |
| IR Distance | Up to 30 Meters |
| White Led Distance | Up to 20 Meters |
| Waterproof Level | Indoor use only |
| Power Supply | DC12V or PoE (IEEE802.3af) |
| Power Consumption | <3W (During Day); <9W (At Night) |
| Working Temperature | -30°C ~ 60°C |
| Working Humidity | 5% ~ 93% Rh |
| Color/Material | Black & White/ Plastic + Metal |

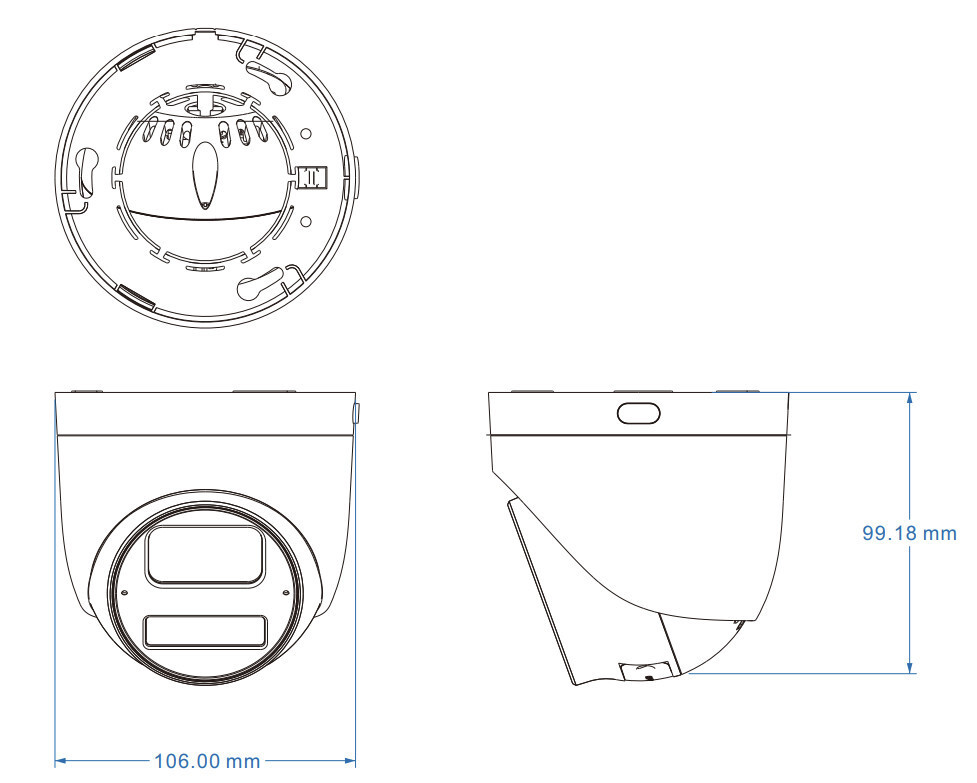

| Dimensions (W x H x D) | 108x104x106mm |
| Weight | 320g |
| Installation Method | Ceiling mount |
